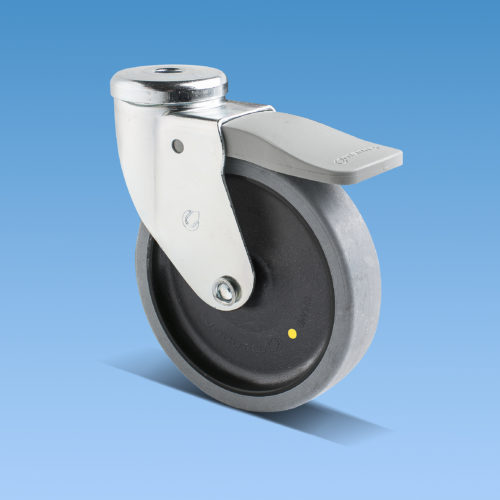

E-J-100 PTE A
200310
| Product type: | Swivel castors with brake |
| Product group: | Equipment castors |
Manner’s equipment castor selection offers a diverse range of high-quality, durable and smooth running castors. The castors are designed to have a structure that is both durable and stylish. They are also highly reliable and safe. The forks are made of galvanised steel, and there is a variety of wheel options available depending on the application and operating conditions. The castors are available with a single action brake or total-stop brake, depending on the model.
Download the product card
Technical data
Wheel diameter (mm):
100
Hardness of the tread (shore A):
90
Wheel width (mm):
23
Centre material:
Conductive polypropylene
Load capacity (kg):
50
Bearing type:
Plain bearing
Overall height (mm):
125
Swivel radius (mm):
95
Bolt hole diameter (mm):
10
Weight (kg):
0.3008
Fork material:
Steel
Tread material:
Conductive thermopl. rubber
Brake type:
Single action brake
Brake control:
Individual
