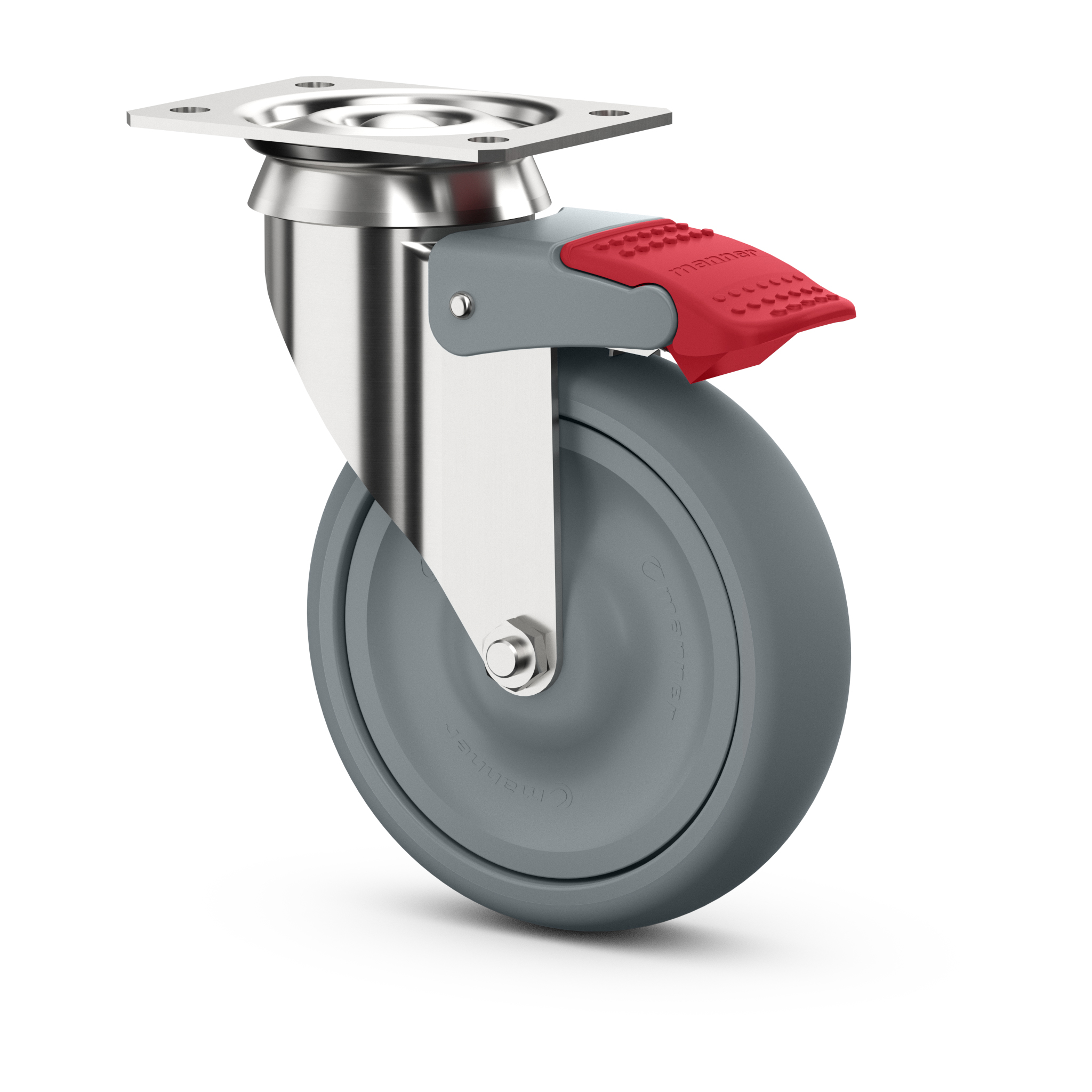

ESL-JN-S-150 NEK/K
300905
| Product type: | Swivel castors with brake |
| Product group: | Equipment castors |
Manner’s equipment castor selection offers a diverse range of high-quality, durable and smooth running castors. The castors are designed to have a structure that is both durable and stylish. They are also highly reliable and safe. The forks are made of galvanised steel, and there is a variety of wheel options available depending on the application and operating conditions. The castors are available with a single action brake or total-stop brake, depending on the model.
Download the product card
Technical data
Wheel diameter (mm):
150
Hardness of the tread (shore A):
60
Wheel width (mm):
32
Centre material:
Polyamide
Load capacity (kg):
105
Bearing type:
Ball bearing
Overall height (mm):
190
Fitting:
Rectangular top plate
Swivel radius (mm):
115
Weight (kg):
1.092
Fork material:
Steel
Plate length x width (mm):
95X70
Hole centres length x width (mm):
75X45
Fastening hole diameter (mm):
8.5
Tread material:
Elastic solid rubber
Brake type:
Total-stop brake
Brake control:
Individual
