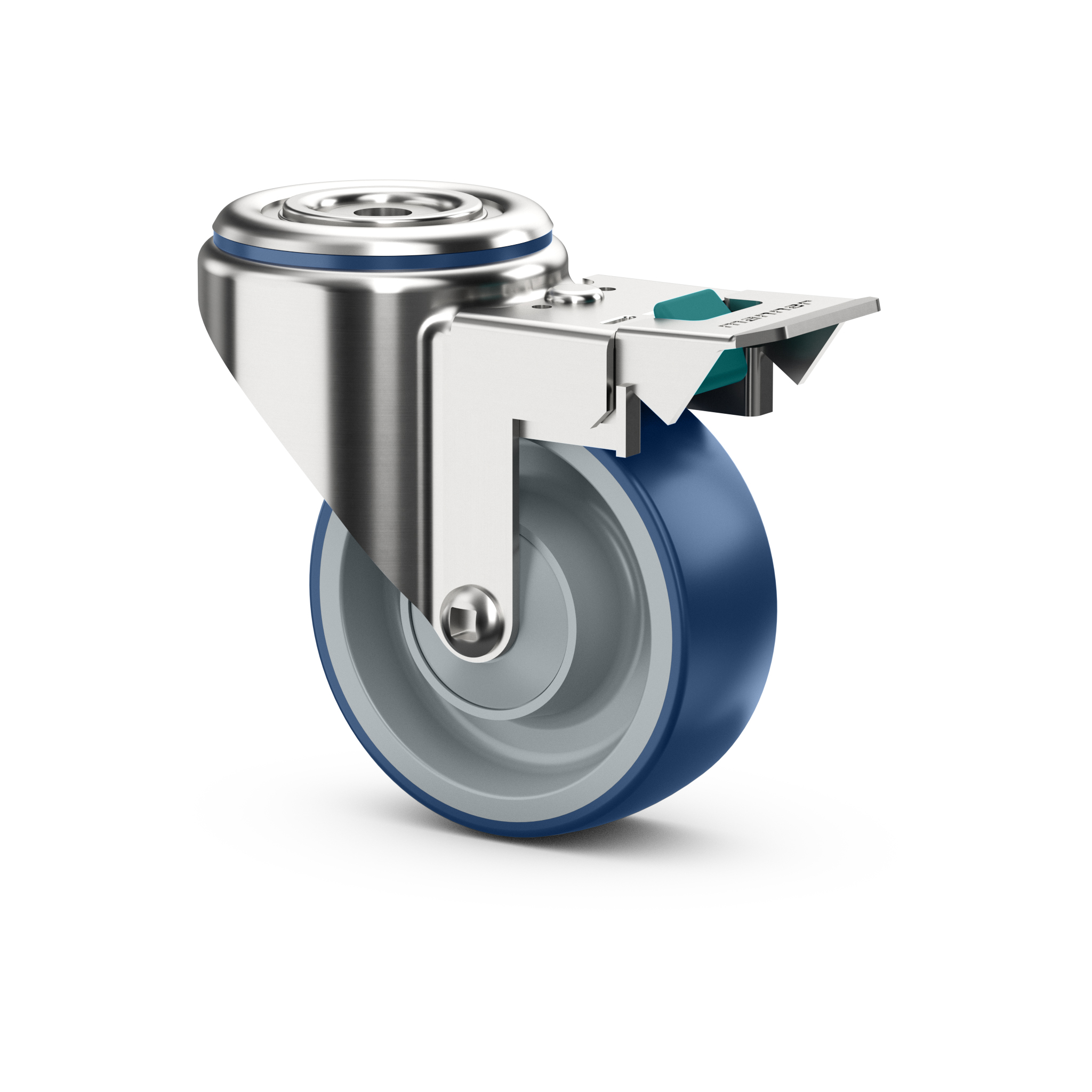

LK-J-100 ND/K
400530
| Product type: | Swivel castors with brake |
| Product group: | Medium-duty castors |
Users have been impressed by the functionality and durability of Manner's castors for logistics and industrial uses. With their extra-strong structure, they are long-lasting and ideal for continuous heavy-duty use.
Download the product card
Technical data
Wheel diameter (mm):
100
Hardness of the tread (shore A):
98
Wheel width (mm):
36
Centre material:
Polyamide
Load capacity (kg):
140
Bearing type:
Ball bearing
Overall height (mm):
132
Fitting:
Bolt hole
Swivel radius (mm):
110
Bolt hole diameter (mm):
12.5
Weight (kg):
0.95
Fork material:
Steel
Tread material:
Polyurethane
Brake type:
Total-stop brake
Brake control:
Individual
